Build your own iPTV profitable network NOW!

Intensity allows you to capture and playback in the most incredible quality of HDMI and component analog video in both SD and HD. Smash the quality barrier for your video work because Intensity is not only the highest quality, but also affordable!

Working in HDTV is exciting, however HDV’s heavy compression and limited 1440 x 1080 resolution can cause problems with video quality and editing. Intensity Pro eliminates these problems by using direct capture from the camera image sensor at full 1920 x 1080 HDTV resolution and uncompressed video quality. Using it on TikiLIVE you will enjoy the best HD video streaming experience.

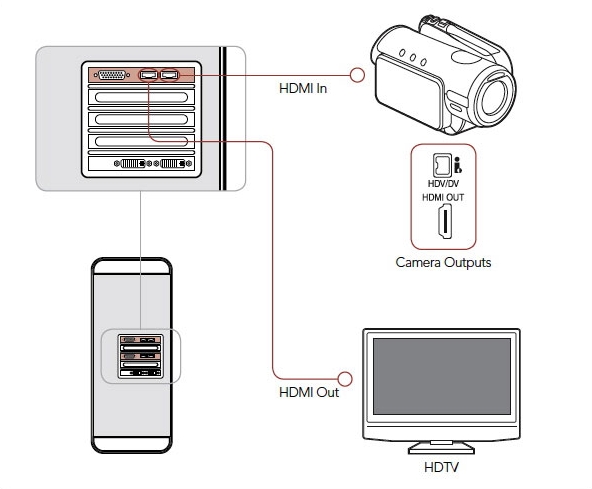

If your camcorder has an HDMI out, you can stream directly through the Intensity Pro. Hooking up your camera is just a matter of seconds. Just plug in your HDMI cable into the HDMI IN slot and you are ready to enjoy the stream on your computer.

Another option would be to use the component in cables:

Intensity Pro features high quality analog component RCA type connectors, and HDMI for use with a massive range of video cameras, televisions and projectors. Intensity Pro captures video in real time directly from the HDMI or analog component outputs of HDV cameras. Real time playback for client-monitoring and editing using large screen HDTVs or HD projectors is easy using the HDMI and analog component outputs.

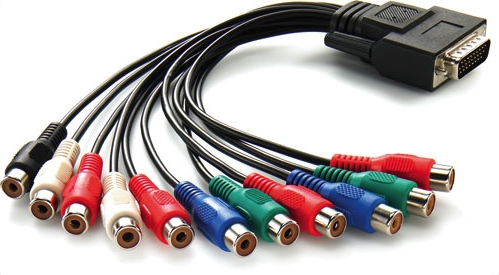

Here you can view each connector detailed for the Intensity Pro break-out cable.

For the component connection, you will need to insert the 3 component connectors into:

* 7 R-Y IN – here you will connect the RED connector
* 8 Y IN – here you will connect the YELLOW connector
* 9 B-Y IN – here you will connect the BLUE connector

For the composite connection, you will need to insert the 3 component connectors into:

* 8 Y IN – here you will connect the YELLOW connector
* 14 AUDIO IN LEFT – here you will connect the WHITE connector
* 15 AUDIO IN RIGHT – here you will connect the RED connector

Have a look at this test video captured with Intensity Pro:

You can run some tests yourself if you have an Intensity Pro card using our last HD broadcaster called The HD Wave. Read more about The HD Wave HERE.
